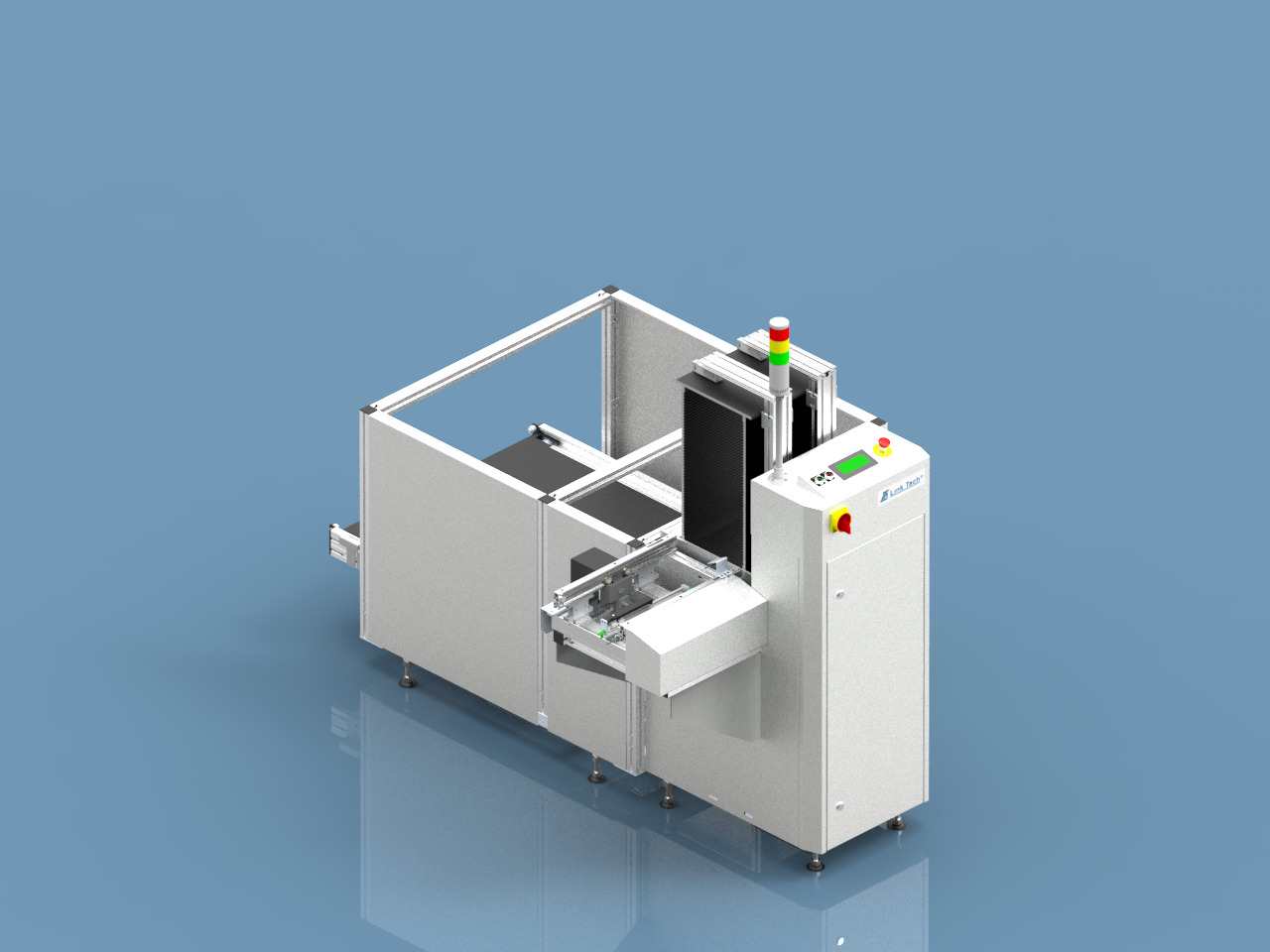

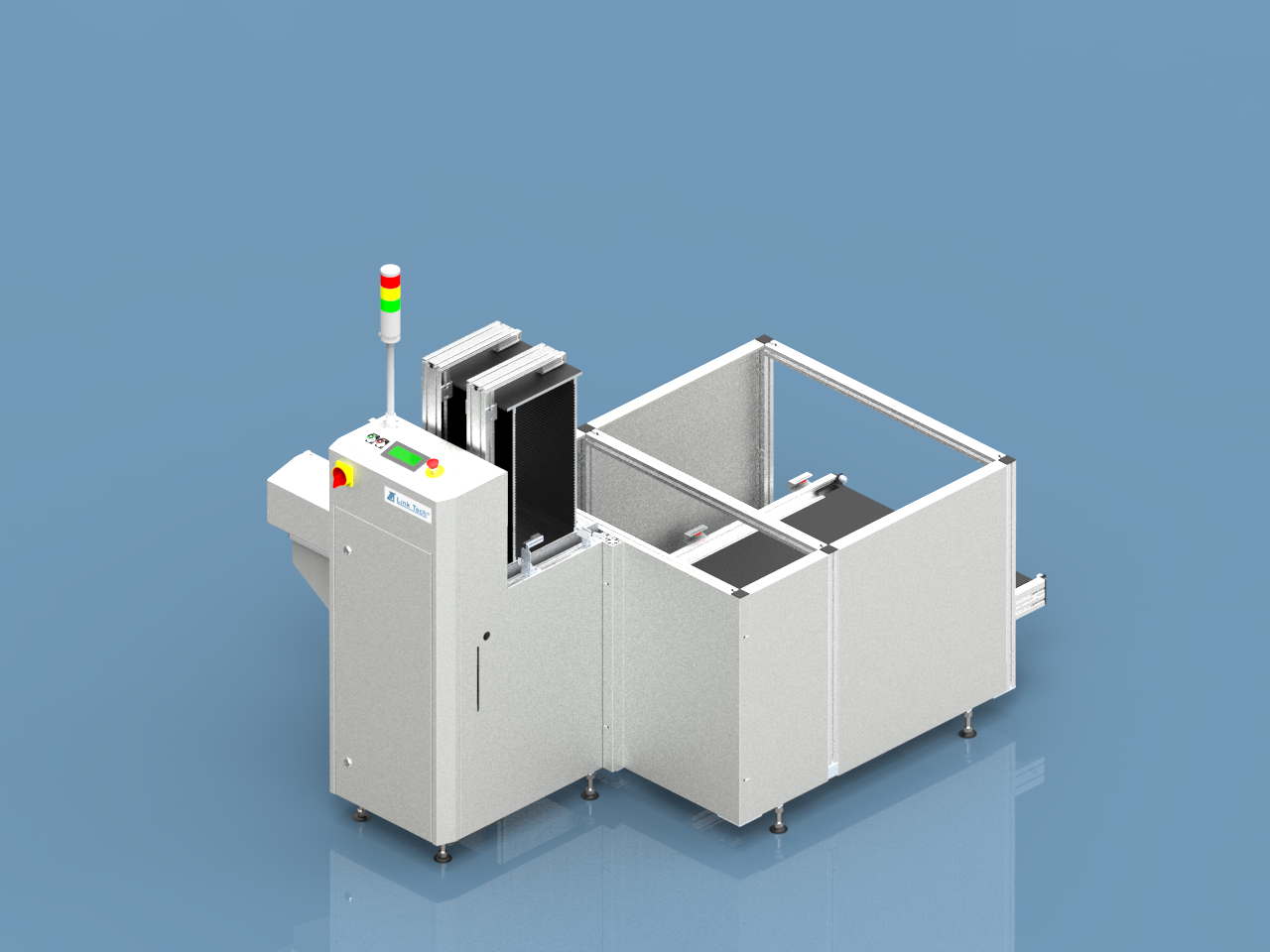

Ergo Magazine Unloader ( UD-EG )

Ergo Magazine Unloader ( UD-EG )

Function:

As the name “Ergo” imply this PCB Magazine Unloader is design with Ergonomic in mind for easy handling to human posture.

It is possible to implement auto transfer via AGV or Trolley cart for loading and unloading Magazine with the lower loading and unloading level.

Pusher are “Auto Centering” using PCB size input via touch screen.

All PCB Magazine Unloader Function remain as Standard Loader.

The Ergo Magazine Unloader has 4 magazine capacity (2 Left side, 2 Right side) with Automatic magazine change over.

The communication between the Unloader to downstream machine establish via a SMEMA signal.

Touch screen are standard for all model, modes of operation and parameter are input via touch screen display.

Manual mode with individual control of all Motors and Pneumatic actuators.

Feature

• Rigid Aluminium extrusion structure with mild steel base

• Low noise ESD nylon chain magazine transfer

• Pneumatic Magazine shutter transfer

• Auto Width Conveyor & Auto centering pusher

• Regulated air pusher force control

• Standard 4 pitch with offset top/bottom pitch selection

• Loading from Top or Bottom of magazine selection

• Flush function

• Standard Touch Screen User Interface

• Background suppression type Photo Sensor for false free PCBs detection

• Standard SMEMA interface

• Standard or customize magazine

• Standard and CE certified version available

• Option of Extend Conveyor

• Option to communicate with AGV for Auto Magazine Transfer
