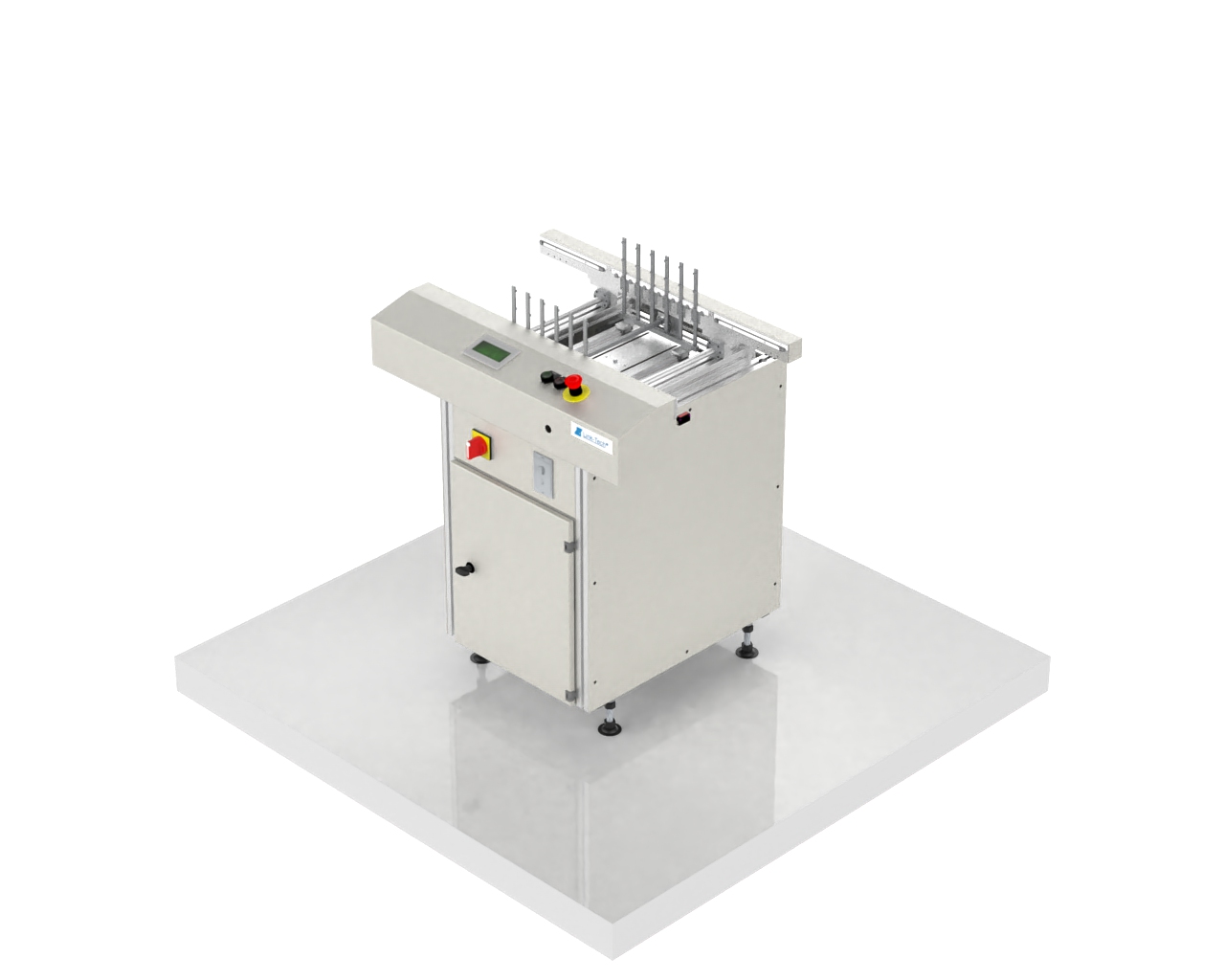

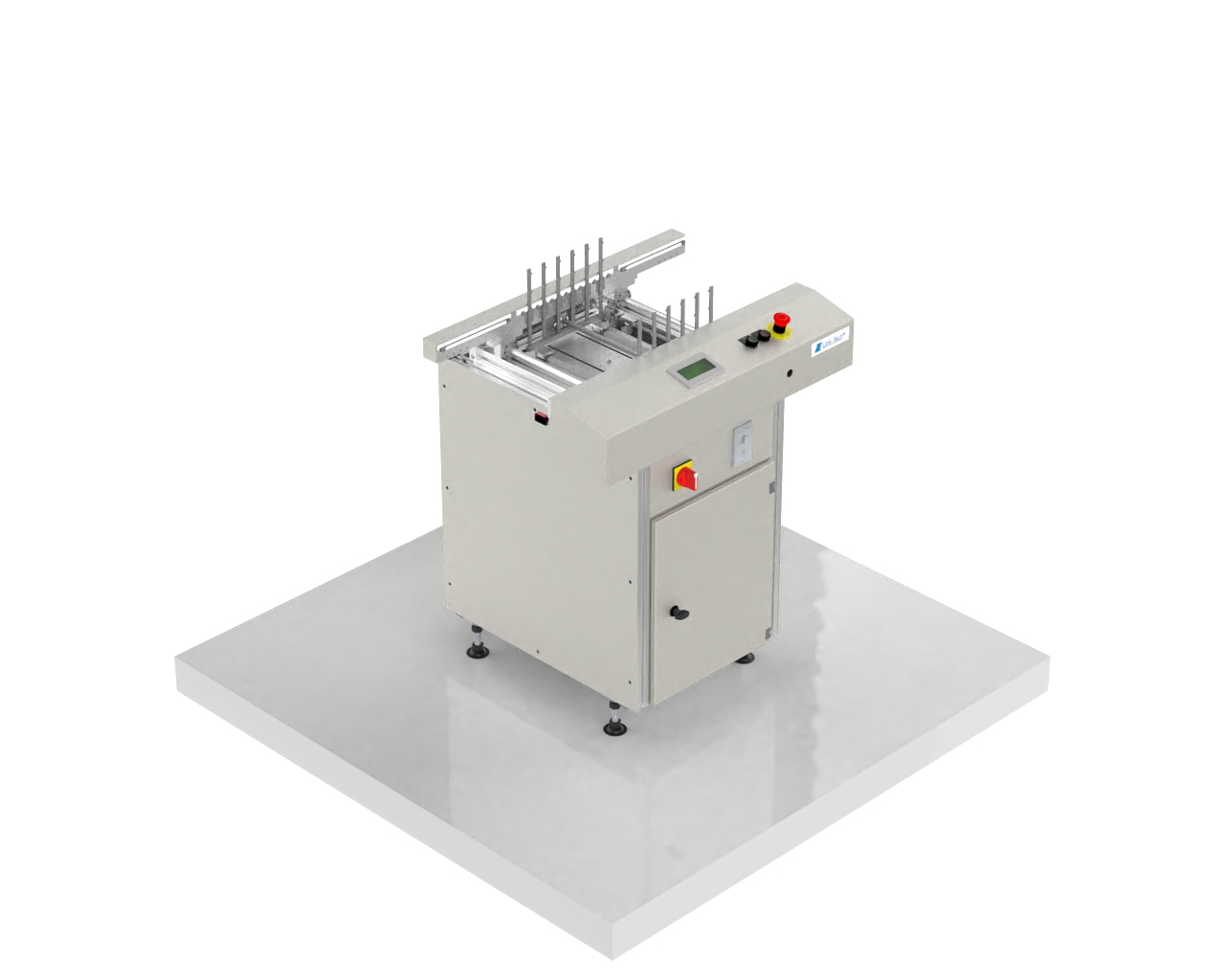

Link Reject Conveyor ( LK-RJ)

Function:

The PCB Link Reject conveyor connect SMT machine in SMT line for PCBs continues process.
PCBs are delivered via twin belt conveyor with variable speed adjust..
The Link Reject Conveyor ideally place after SPI or AOI for temporary reject NG board.
The standard Link Reject Conveyor are equip with 2 level NG buffer, More buffer can be customised.
Multiple drives and length are available, customise length available on request.
The communication between the Link Conveyor to upstream and downstream machine establish via a SMEMA signal.

Feature

  • Rigid Aluminium extrusion structure with mild steel base
  • Ergonomic arm rest design
  • Standard manual crank width adjustment
  • Auto width adjustment (touch screen) and Slider width adjustment available (Eco model)
  • Multi section drive option available
  • Flat or Cord belt (Board transfer) type available
  • Automatic width adjustment available
  • Background suppression type Photo Sensor for false free PCBs detection
  • Standard SMEMA interface
  • Standard and CE certified version available
