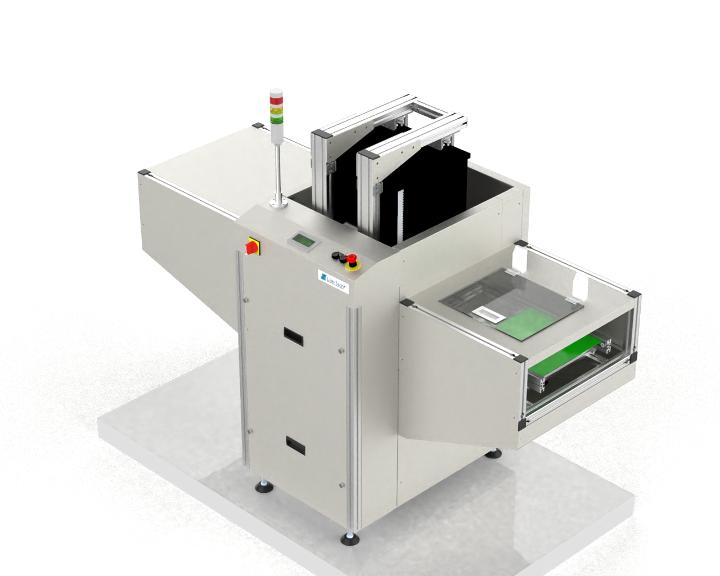

Single Magazine Loader ( LD-SM )

Single Magazine Loader ( LD-SM )

Function:

The PCB Single Magazine Loader load PCBs to downstream machines in the SMT line, it is ideally place at start of SMT line where space constrain.

PCBs are load from magazine via motorized pusher with auto centering control.

The Single Magazine Loader has 1 magazine capacity.

Drawer type magazine tray for easy load / unload handling.

Lifter are driven by Servo Motor for precise pitching and fast Magazine change over.

The communication between the Loader to downstream machine establish via a SMEMA signal.

Touch screen are standard for all model, modes of operation and parameter are input via touch screen display.

Manual mode with individual control of all Motors and Pneumatic actuators.

Feature

• Rigid Aluminium extrusion structure with mild steel base

• Single Magazine buffer

• Automatic magazine clamp

• Drawer type magazine load / unload

• Motorized pusher with auto centering control

• Standard 4 pitch with offset top/bottom pitch selection

• Loading from Top or Bottom of magazine selection

• Servo Motor for precise pitching and fast Magazine change over.

• Standard Touch Screen User Interface

• Background suppression type Photo Sensor for false free PCBs detection

• Standard SMEMA interface

• Standard or customize magazine

• Standard / Eco and CE certified version available

• Option for Extend Conveyor ( Output Conveyor )
