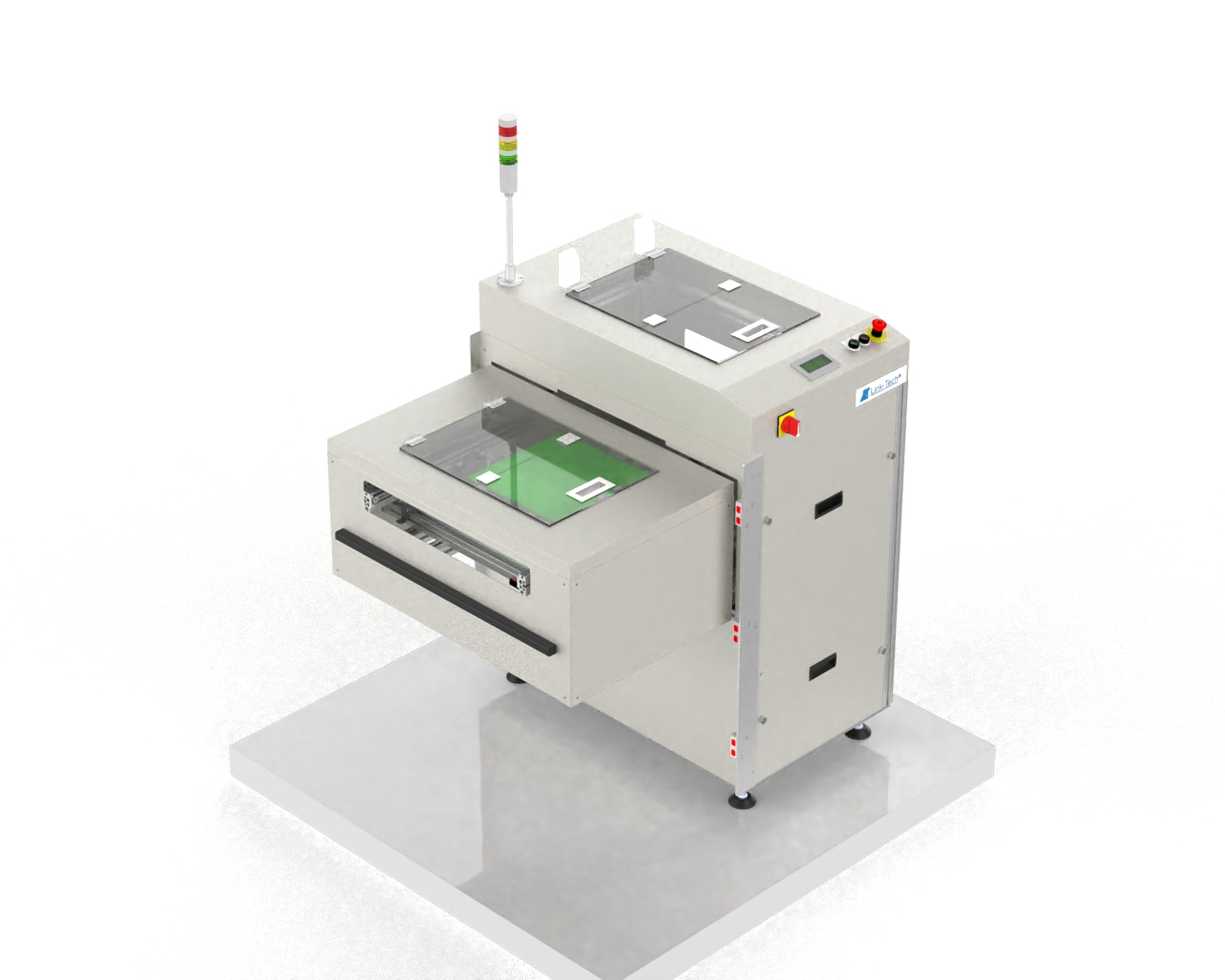

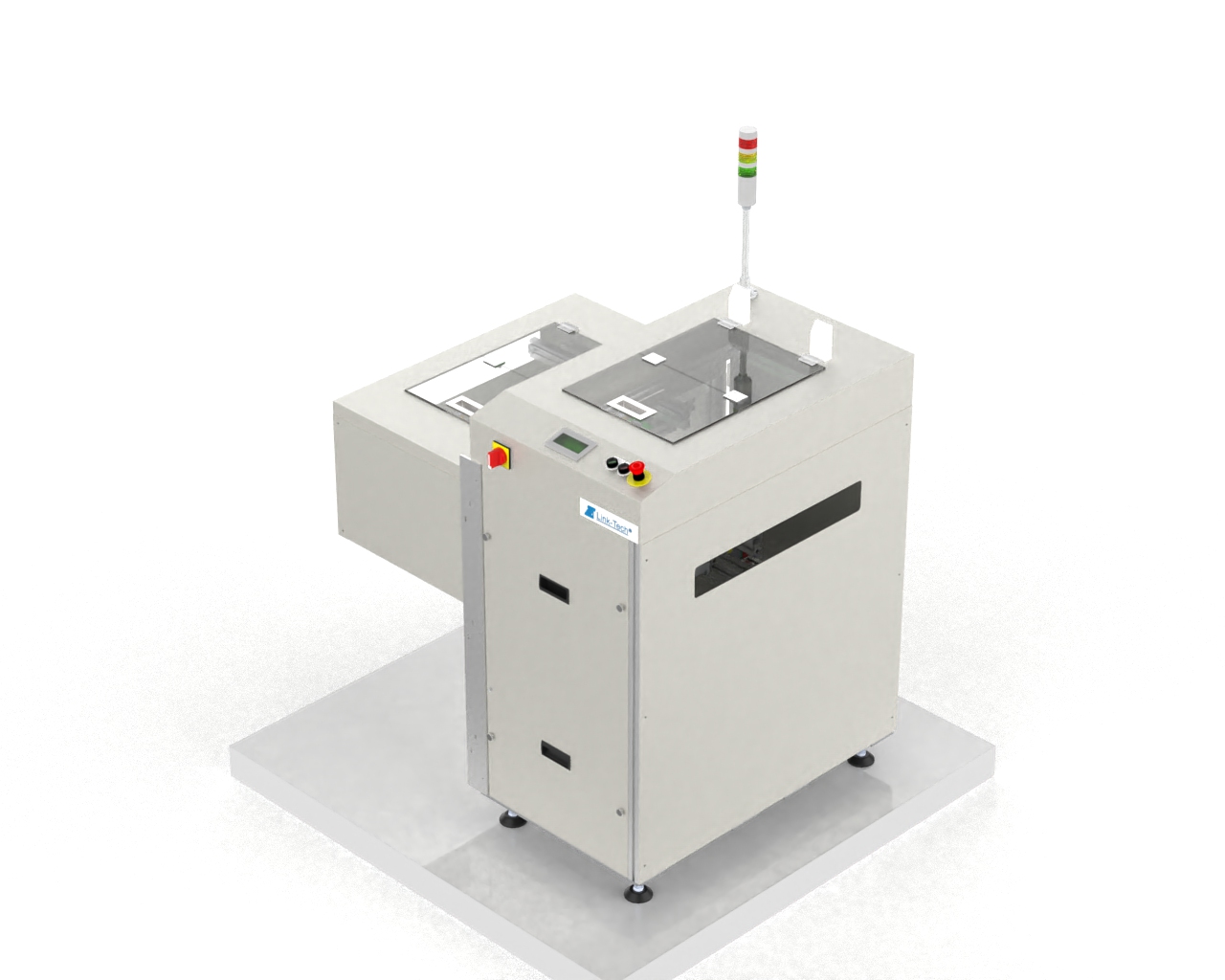

Telescopic Conveyor ( BH-TS )

Function:

The PCB Telescopic conveyor connect passage way in SMT line for PCBs continues process.
PCBs are delivered via telescopic shutter with precise stop action.
The Telescopic conveyor can be configure to Normally Close or Normally Open operation.
Extend position are able to teach through touch screen without need to do sensor adjustment.
The communication between the Telescopic conveyor to upstream and downstream machine establish via a SMEMA signal.
Touch screen are standard for all model, modes of operation and parameter are input via touch screen display.
Manual mode with individual control of all Motors and Pneumatic actuators.

Feature

  • Rigid Aluminium extrusion structure with mild steel base
  • Large passage way up to 600mm
  • Safety passage sensor & auto return crash sensor
  • Configurable N/O or N/C operation
  • Configurable direction flow
  • Configurable fixed side ( Front or Rear )
  • Flat or Cord belt (Board transfer) type available
  • Teachable Extend position without need to adjust sensor position
  • Automatic width adjustment available
  • Background suppression type Photo Sensor for false free PCBs detection
  • Standard Touch Screen User Interface
  • Standard SMEMA interface
  • Standard and CE certified version available
