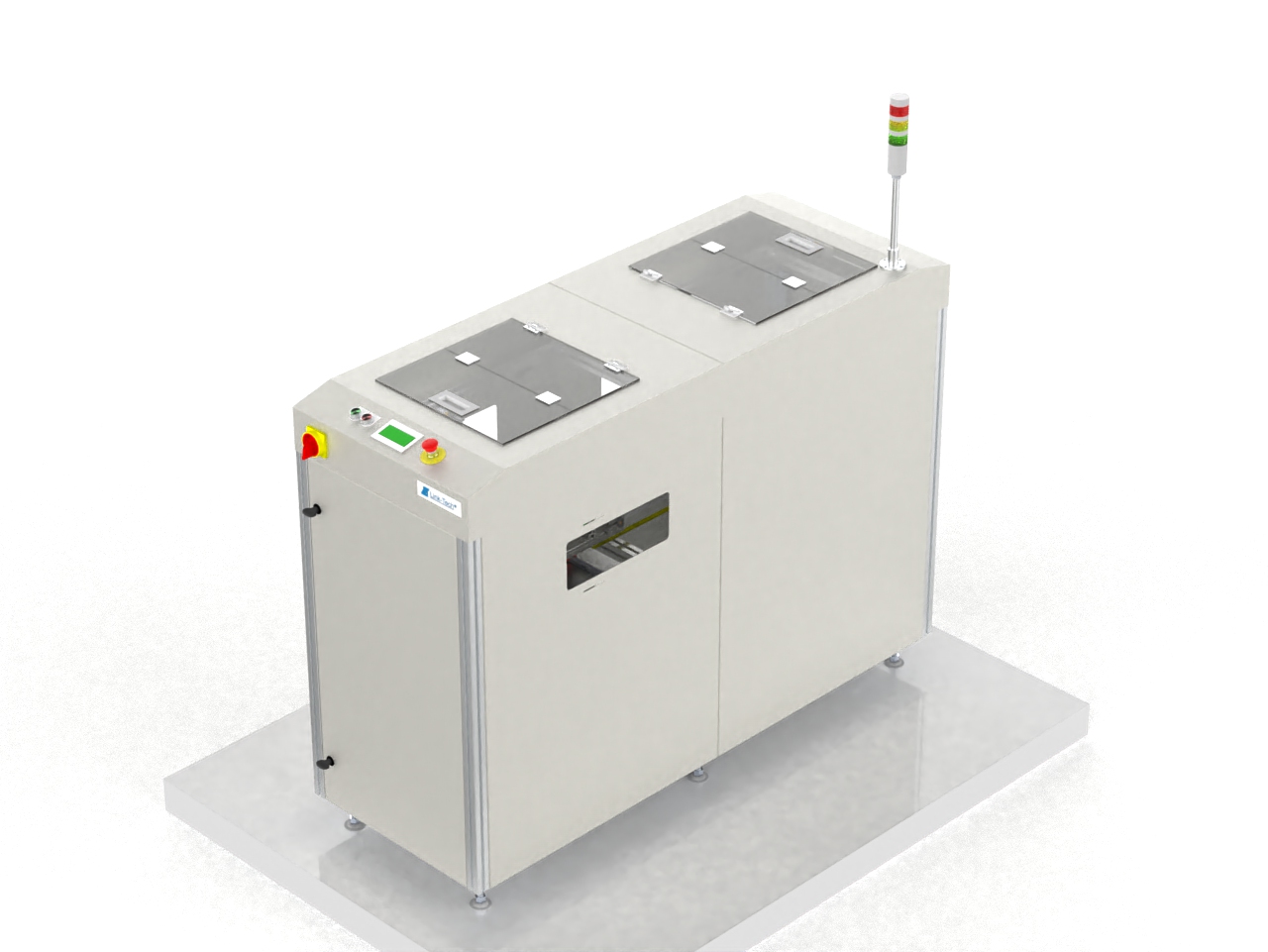

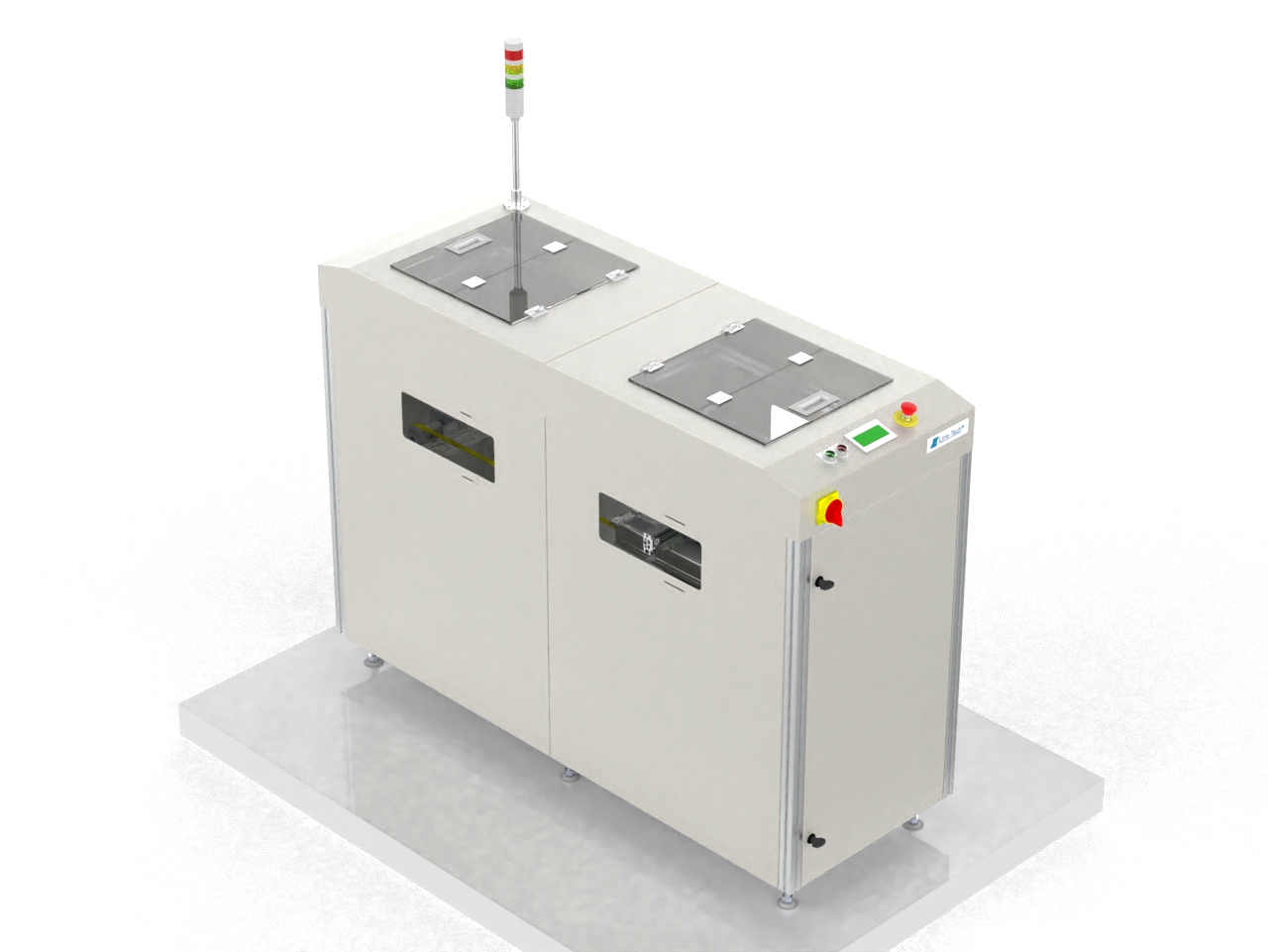

Board Traverser ( BH-TR )

Function:

The PCB Board Traverser divert PCBs to combine 2 SMT line to one or vice versa.
PCBs are diverted via rail guided shutter with precise stop action.
The Board Traverser can be configure to accept board in 2 to 1 / 1 to 2 combination or Good/Bad board junction.
The communication between the BoardTraverser to upstream and downstream machine establish via a SMEMA signal.
Touch screen are standard for all model, modes of operation and parameter are input via touch screen display.
Manual mode with individual control of all Motors and Pneumatic actuators.

Feature

  • Rigid Aluminium extrusion structure with mild steel base
  • C, Z or H diverting configuration available
  • Up to 6M travel stroke
  • Pneumatic or servo motor available
  • Configurable flow direction
  • Good/NG sorting for H junction type available
  • Pass Through mode standard for all size
  • Flat or Cord belt (Board transfer) type available
  • Automatic width adjustment available
  • Background suppression type Photo Sensor for false free PCBs detection
  • Standard Touch Screen User Interface
  • Standard SMEMA interface
  • Standard and CE certified version available
