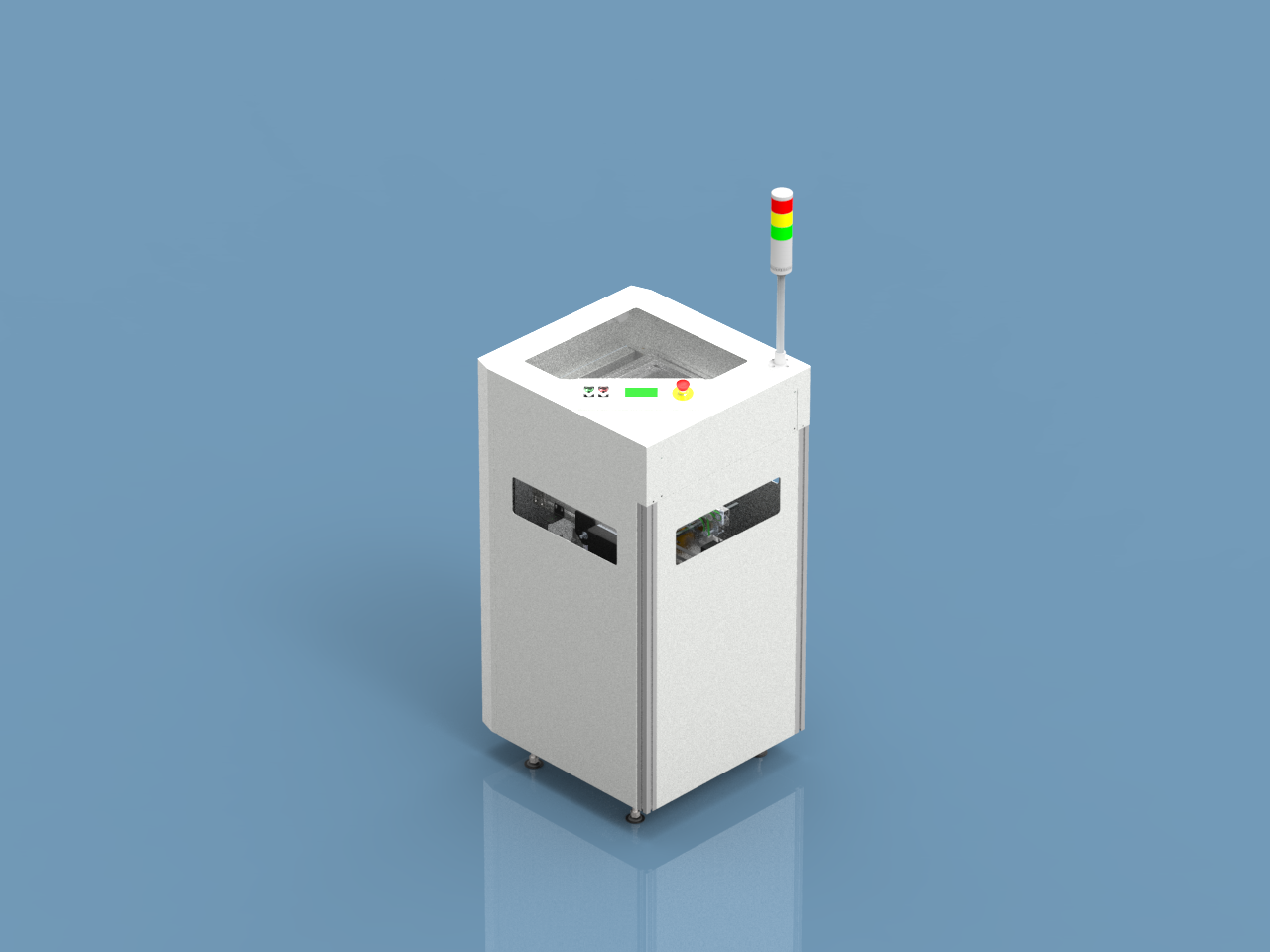

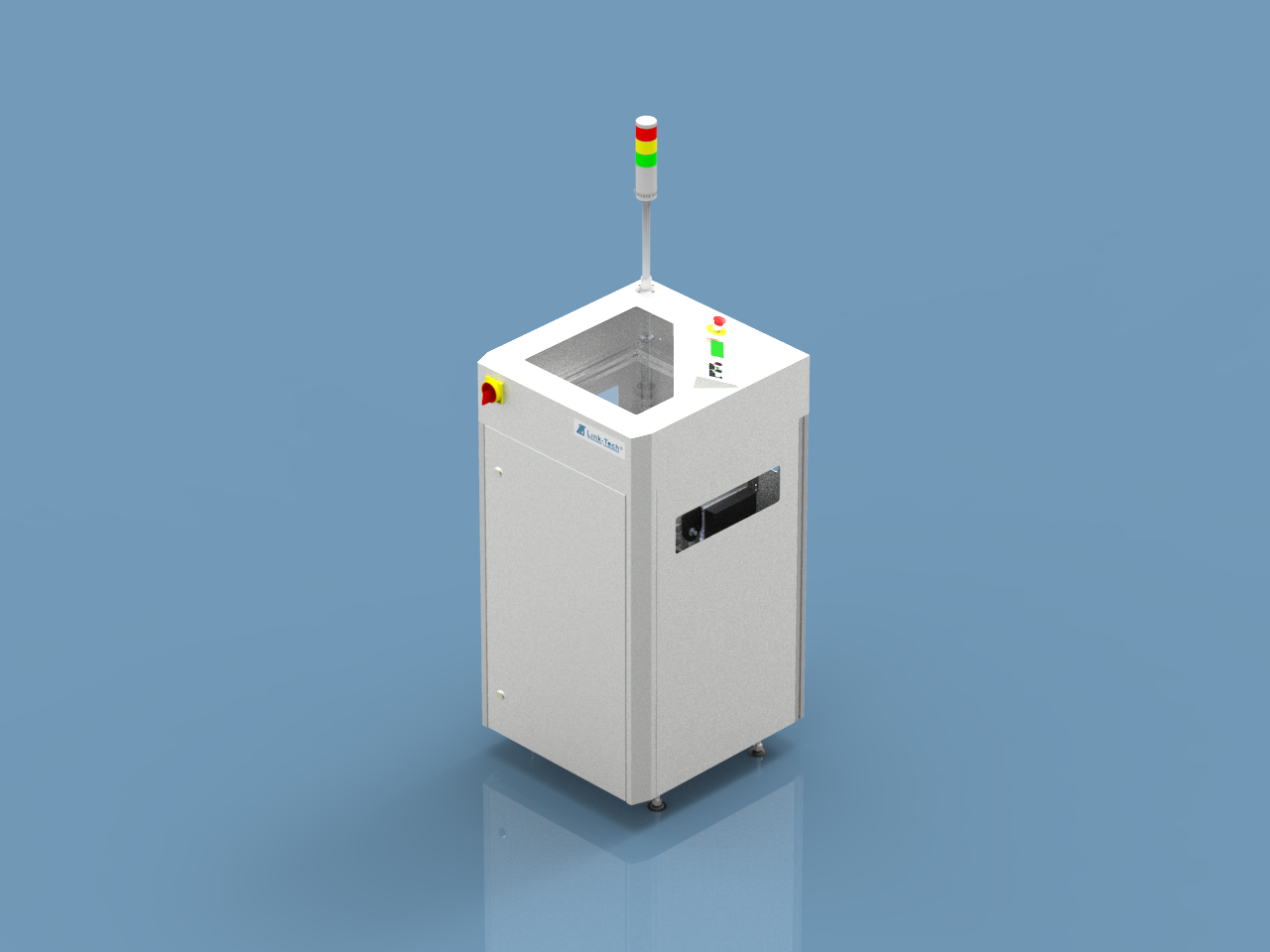

Board Turner ( BH-TN )

Function:

The PCB Board Turner divert PCBs 90° to connect downstream machines in “L” shape SMT line, it is also possible to connect a “U” shape SMT line with two Turner.
PCBs are diverted via turning & gap close mechanism with precise stop action.
The Board Turner can be configure to accept board in CW/CCW position or Good/Bad board junction.
The communication between the BoardTurner to upstream and downstream machine establish via a SMEMA signal.
Touch screen are standard for all model, modes of operation and parameter are input via touch screen display.
Manual mode with individual control of all Motors and Pneumatic actuators.

Feature

  • Rigid Aluminium extrusion structure with mild steel base
  • T or L junction transfer available
  • Gap close for better board transfer
  • Configurable flow direction
  • Good/NG sorting for T junction type available
  • Pass Through mode standard for all size
  • Flat or Cord belt (Board transfer) type available
  • Automatic width adjustment available
  • Background suppression type Photo Sensor for false free PCBs detection
  • Standard Touch Screen User Interface
  • Standard SMEMA interface
  • Standard and CE certified version available
