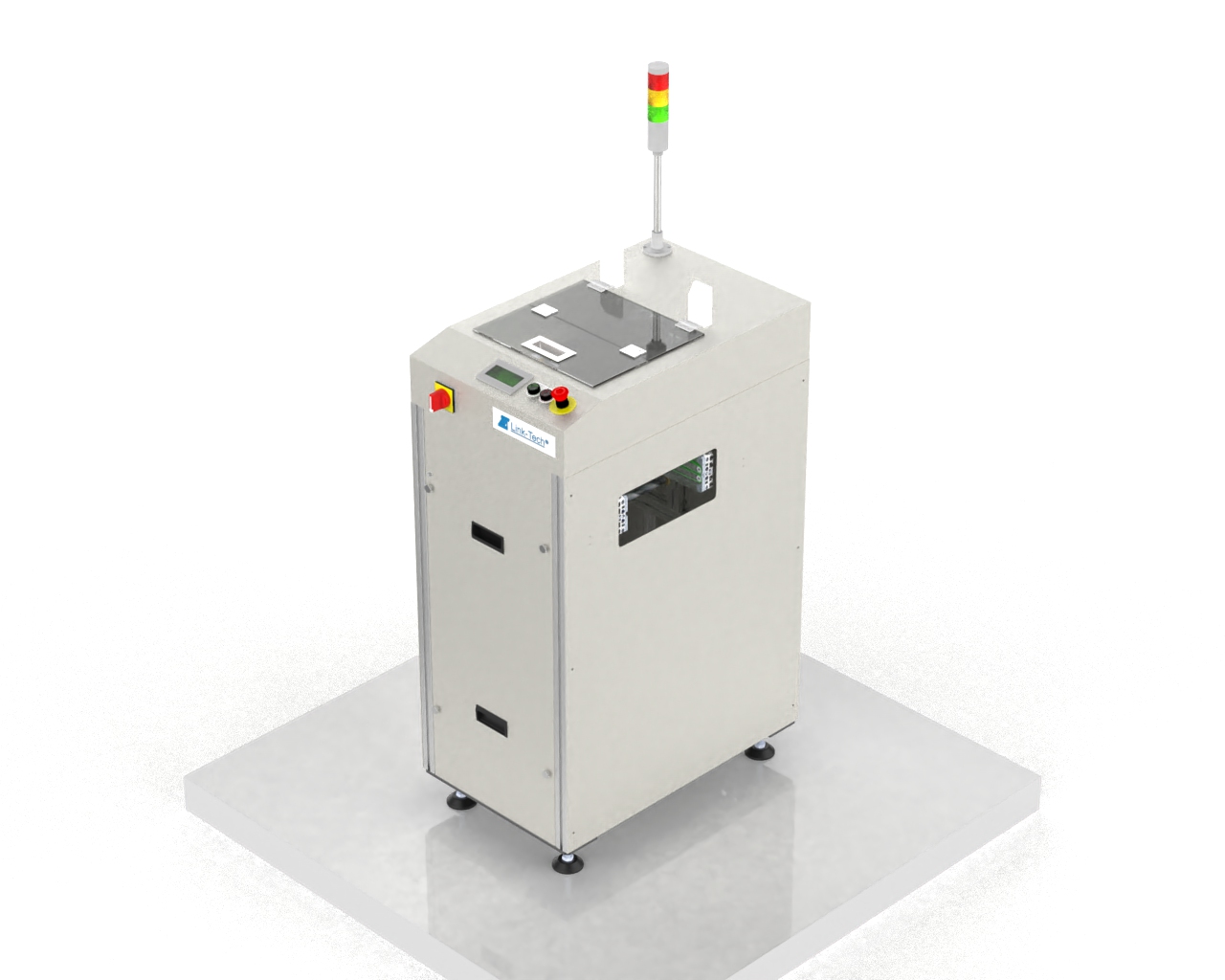

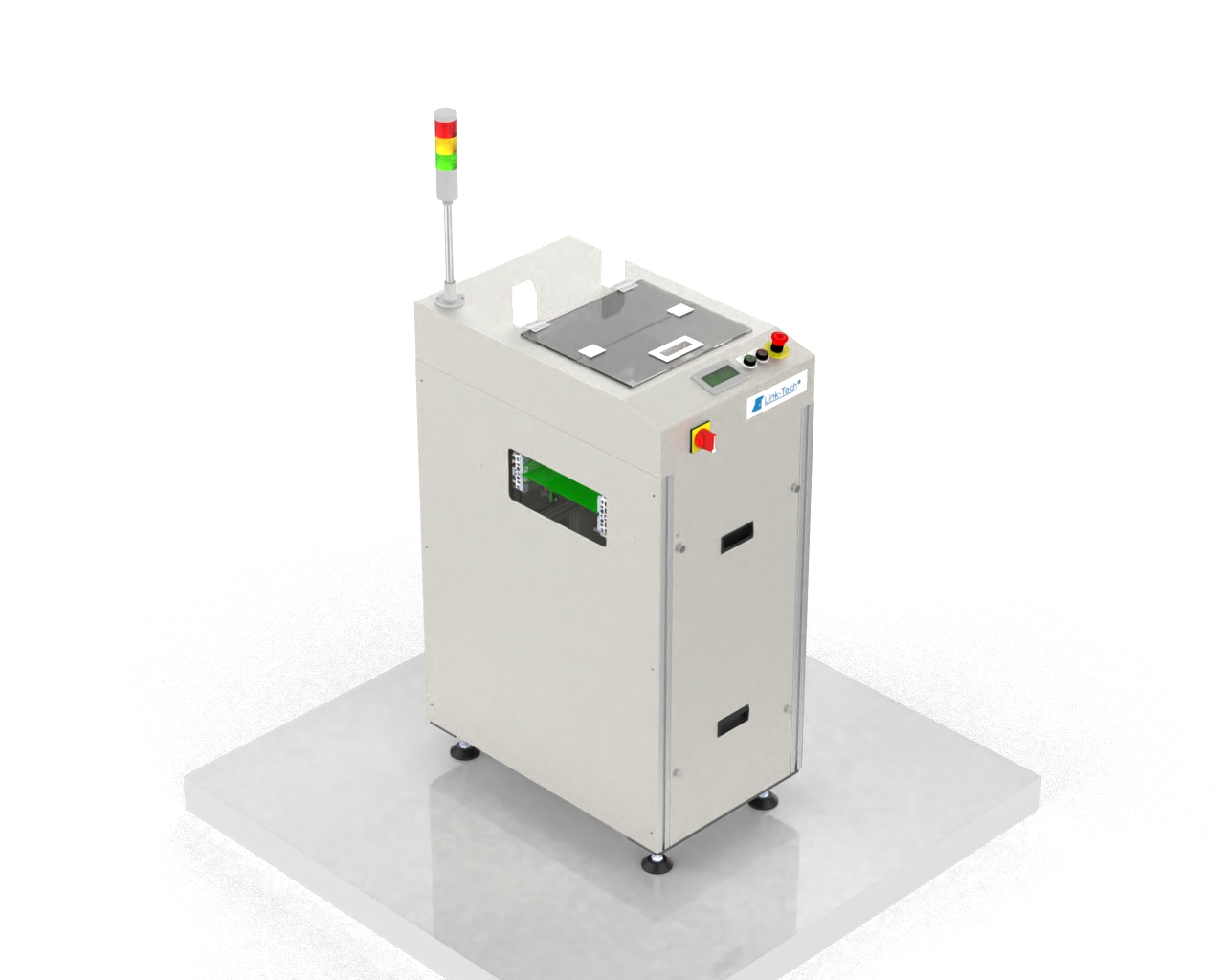

Board Inverter ( BH-IV )

Board Inverter ( BH-IV )

Function:

The PCB Board Inverter flip PCBs to other side for downstream machines in the SMT line, it is ideally place after AOI or buffer for other side process.

PCBs are inverted via turning mechanism with precise stop action.

The Board Inverter are able to accept board in both CW or CCW position thus maximise the cycle time.

The communication between the BoardInverter to upstream and downstream machine establish via a SMEMA signal.

Touch screen are standard for all model, modes of operation and parameter are input via touch screen display.

Manual mode with individual control of all Motors and Pneumatic actuators.

Feature

• Rigid Aluminium extrusion structure with mild steel base

• Fast cycle time (one flip per cycle)

• Configurable flow direction

• Pass Through mode standard for all size

• Flat or Cord belt (Board transfer) type available

• Automatic width adjustment available

• Background suppression type Photo Sensor for false free PCBs detection

• Standard Touch Screen User Interface

• Standard SMEMA interface

• Standard and CE certified version available
