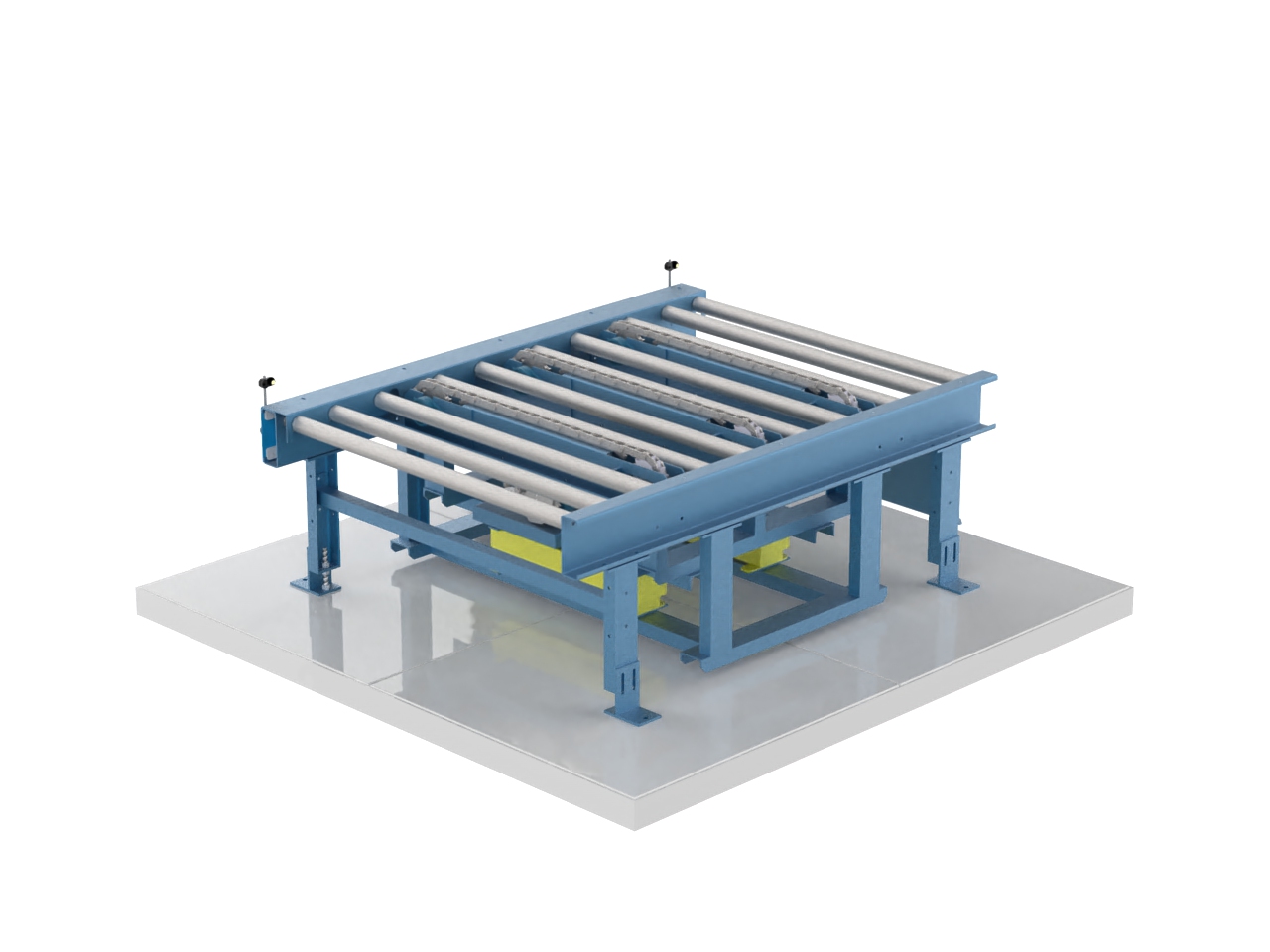

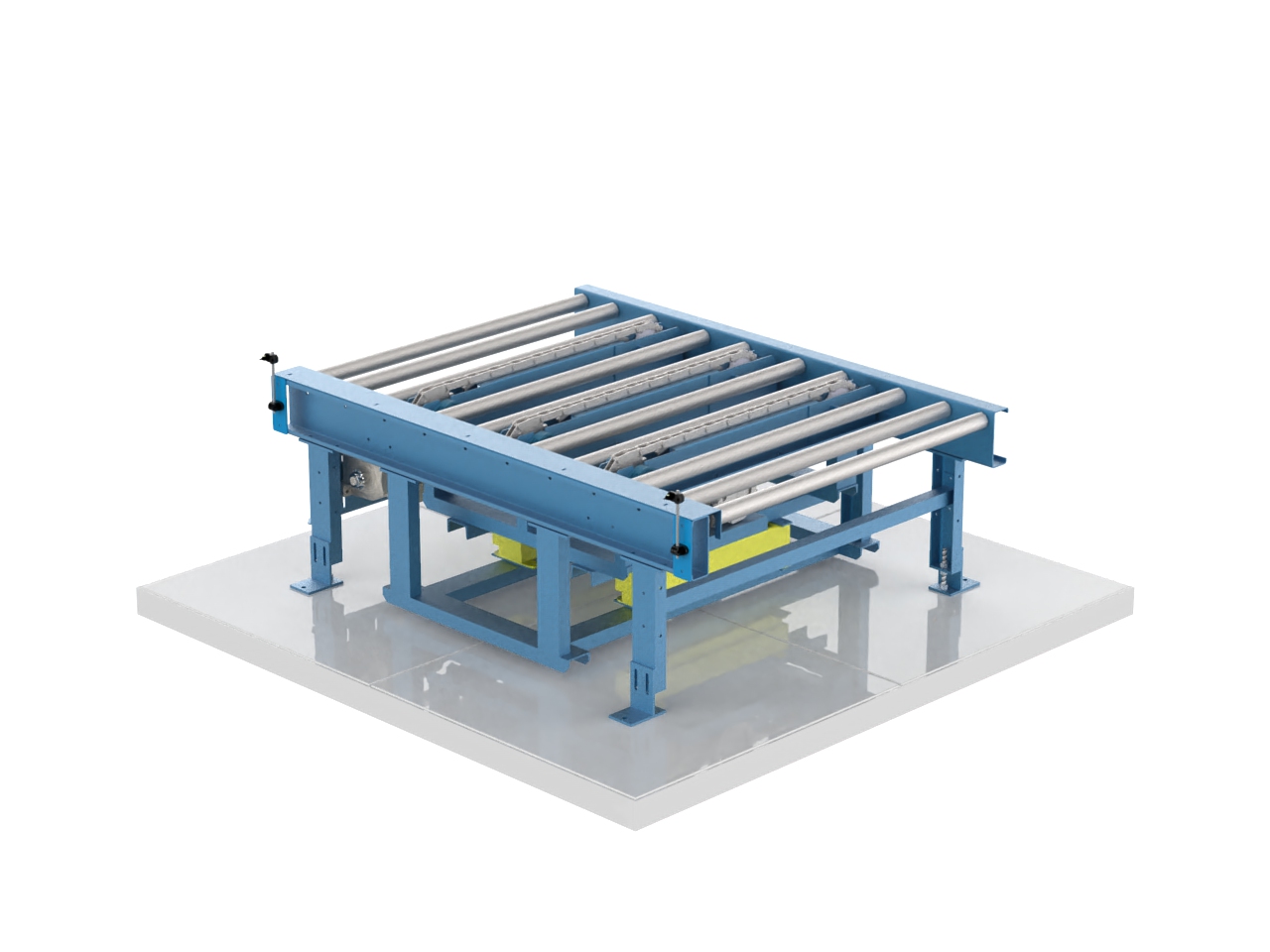

Roller Chain Conveyor ( RC-LT )

Roller Chain Conveyor ( RC-LT )

Function:

The Roller Chain Conveyor are suitable for all kinds of heavy and light duty right angle ( 90°) transfer needs, it is ideally for transfer Pallets diversion ( 90°).

Roller Conveyor for 0° and Chain Conveyor for 90°.

Pneumatic Power base lift for lifting, up to 3,000KG.

Various width and height & length can be configure to suite to the needs.

Various type of Roller & Chain drives are available.

Photo sensor can be incorporate for end of line process to stop Pallets when reaching end of conveyor.

Feature

• Rigid & Strong Metal structure and support legs

• High quality Roller are used, customer preferred Roller’s brand ( Interoll, etc… ) can be arrange

• High quality Chain are used, customer preferred Chain’s brand ( Tsubaki, etc… ) can be arrange

• Pneumatic Power base lift, up to 3,000KG

• Standard Round side guide, for easy adjustment and reconfiguration

• Speed can be adjust via option with variable speed control

• Standard Sumitomo motor ( Japan ) are used, Others brand ( SEW, Nord etc… ) available on request
